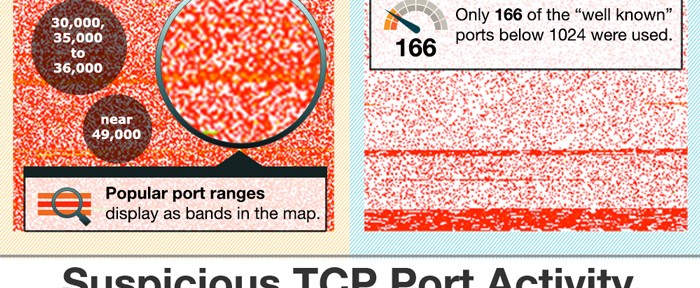

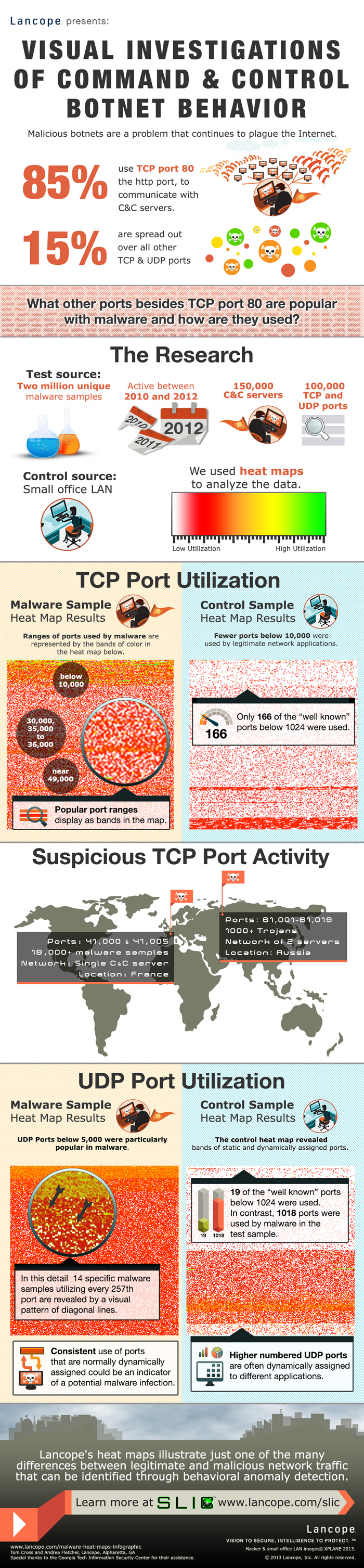

Here is a really cool infographic developed by the director of researcher at Lancope. The original post can be found HERE.
In October, Tom Cross, Lancope’s Director of Research, presented a poster at Visualization for Cyber Security (VizSec) 2013 in Atlanta, GA . The poster included visualizations of the command-and-control channels of nearly two million botnet samples in an effort to help foster a better understanding of how botnets operate, and more effectively differentiate them from legitimate network traffic. The poster was created as a result of data analysis conducted by Lancope’s StealthWatch Labs research team.
